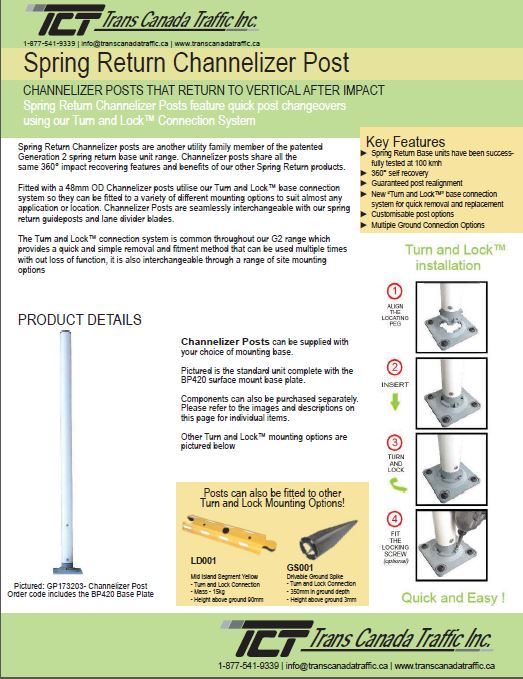

Spring Return Channelizer Post

Spring Return Channelizer posts are another utility family member of the patented Generation 2 Spring Return product line. Channelizer posts share all the same 360° impact recovering features and benefits of our other Spring Return products.

The post is 48mm OD x 1000mm tall, and utilise our Turn and Lock™ base connection system so they can be fitted to a variety of different mounting options to suit almost any application or location.

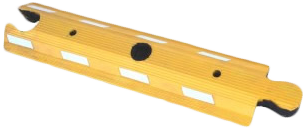

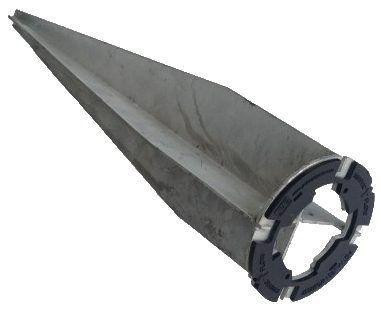

Spring Return Guideposts can also be fitted to any of our other Turn and Lock™ ground connection options like the " BP420 Surface Mount Base Plate", the "GS001 Drivable Ground Spike", or even a "LD001 Mid Lane Divider". Components can also be purchased separately.

Click the Specifications tab for dimensional details

Click the Installation tab for Installation Information
Related Items
Turn and Lock™ Surface Mount Base Plate
Turn and Lock™ Ground Spike
Spring Return Mid Island Segment
  • Key Features
  • Specifications
  • Istallation
  • Support

Spring Return Channelizer Post feature full 360 degree impact recovery and have been successfully Impact tested to 100kmh (refer to our video to see the testing).

Spring Return Channelizer Post utilise our patented Generation 2 Spring Return Base Units as ther self recovering engine. Generation 2 base units share all the key features and toughness of our proven steel based Spring return Signposts. Spring Return Channelizer Post also use the interchangable Turn and Lock™ connection system so they can be fitted and removed in seconds. Channelizer Post can be removed and fitted multiple times with out loss of function.

Spring Return Channelizer Post can also be fitted to any of the other Turn and Lock™ ground connections in the Turn and Lock™ range.

Key Features:

* Spring Return Channelizer Post have been successfully been tested at 100 kmh

* 360 degree self recovery

* Guarenteed Post realignment after impact

* New Turn and Lock™ base connection system for quick removal and replacement

* Multiple Alternate ground connection options are available

Product Specifications - G2173201 Spring Return Channelizer Post

Material:  HDPE

Colour: White

Mass: 1.0 kg

Diameter: 48mm

Height: 1000mm

Custom Applications: Contact us if you have a custom application and we will help.


Click on Image

Technical Instruction:

Spring Return Guidepost Installation Guide - Ground Spike

Click on Image

Installation Instruction:

Spring Return Guidepost Installation Guide - Surface Mount

Click on Image

Installation Instruction:

Spring Return Guidepost Installation Guide - Ground Spike

Click on Image

Removal Instruction:

Spring Return Guidepost Removal Guide - Ground Spike

Click on Image

Installation Instruction:

Spring Return Guidepost Installation Guide - Surface Mount

Click on Image

Installation Instruction:

Turn and Lock™TM Guidepost Replacement Instruction




All our sign post products are made from materials that are 100% recyclable, providing sustainable products that have zero impact on land fill.

 Our goal is to make products that:

*Deliver significant ongoing cost savings

*Provide a Passive Safe road product solution

*Use 100% recyclable material where possible
